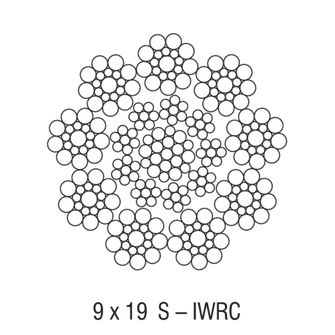

DRAKO 300T 9-strand heavy duty rope – Govenor ropes
Technical infos
Application range
- DRAKO 300 T is the most efficient solution as suspension rope for high and very high elevators and for all traction drive elevators with many deflection sheaves.
- This rope is successfully used in diameters up to 13mm as a governor rope.
Design
- preformed
- bright
- prestreched
Alternative design
- on request galvanized, some diameters galvanized ex stock
Rope gade
- 1570 or 1770
Core
- IWRC
Elastic elongation – at 10% of the MBL
- ≤ 0.11 %
Permanent elongation – acc. to DIN 51201
- ≤ 0.15 %
Advanteges
- The strand construction of DRAKO 300T is dependent on the rope diameter to optimize fatigue bending performance and wear resistance.
- very round cross-section
- blue DRAKO-Marking-Line for an easy installation
- many thin wires, hence very flexible with good bending performance
- high flexural performance
- low elastic and plastic elongation
- robust during installation due to its proven IWRC-design
